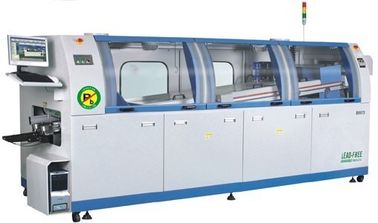

lead free dual wave soldering machine

lead free dual wave soldering machine
lead free dual wave soldering machine

बड़ी छवि :  lead free dual wave soldering machine

उत्पाद विवरण:

Place of Origin: China
ब्रांड नाम: BEZ
Model Number: v-350

भुगतान & नौवहन नियमों:

Minimum Order Quantity: 1 set
मूल्य: 23000-25000usd
Packaging Details: wooden
Delivery Time: 10days
Payment Terms: 50% deposit , 50 % before delivery
Supply Ability: 25sets/month
विस्तृत उत्पाद विवरण

Features:

Size & Board Handling

  • Ultra-compact design; only 126’’ long (3200 mm)
  • Variable-speed titanium finger conveyor for PCB s up to 13.8" (350 mm)
  • Smooth, precise width adjustment via hand wheel
  • Automatic finger-cleaner with pump and recirculation system compatible with cleaners for both rosin and aqueous fluxes
  • Conveyor angle adjustable from 4°-7°lead free dual wave soldering machine 0

    Pre-Heating

  • 63" (1600 mm) hot-air convection pre-heat zone with PID temperature control for more thorough and even heat distribution than comparable systems
  • using IR technology;with shot light extra (option)
  • Fluxer
  • Internal high-precision automatic spray fluxer with reciprocating cylinder drive mechanism, automatic control of spray area and time, and independent controls for spray volume and atomization (mist density); compatible with rosin and aqueous fluxes
  • Built-in dual-stage filtration hood over spray fluxing area with fume extraction fan.
  • Control System

  • Keys control with intuitive and simple [ PC or Touch-screen option]
  • Storage of up to more different production parameter files [PC or Touch-screen type]
  • Resettable throughput counter
  • Fully automatic startup and shutdown according to operator-specified dates and timeslead free dual wave soldering machine 1
  • Specifications

    Model

    V-350

    Solder Capacity*

    330kg

    Wave/Pb Free

    Dual Wave**Yes

    Power Supply

    3P 5W,380/220V 50Hz 63A/22KW

    Power for operation

    6KW

    Pre Heat Type/ Length

    Convection /1600mm 2 sections

    System Control

    Touch Screen Control+PLC  /   Keys + PLC     / PC+ PLC

    Fluxer

    Spray Fluxer ( BEZ special )

    Fluxer Capacity

    6 Litres

    Rosin Atomization Device

    Rodless cylinder

    Conveyor

    Titanium V-Shaped Finger claws + Chain

    Max. Board Width

    350mm

    Cleaning Claw pump

    1P AC220V 6W

    Fume Extraction

    Extractor Hood and Filter

    Air Pressure

    4kfg/cm2 / 0.25 Mpa ~0.4 Mpa

    Conveying Rate

    0.5~1.8M/min

    Solder Temperature

    Room Temperature~300°C

    Wave Driving Power

    1/2HP x 2 , 3Phase 220VAC

    Warm-up Time

    Approx. 80 min.  (Setting at 250℃)

    PCB Convey Direction

    Left to right; (Optional: right to left)

    PCB Convey Height

    750 ±20mm

    Component Heigh

    top 120 mm(Option: 160) / bot 15-25 mm

    Machine Bare-dimensions

    3200(L)mm×1380(W)mm×1600(H)mm

    Overall Dimensions

    3900(L)mm×1380(W)mm×1600(H)mm

    Power/Frequency

    3Φ220V/60Hz/6KW

    Weight

    1.4 Ton

    Packing size  (wooden)

    appro.3800(L)mm×1480(W)mm ×1800(H)mm

    Packing weight (wooden)

    Appro.3080 lbs
